説明

説明なし

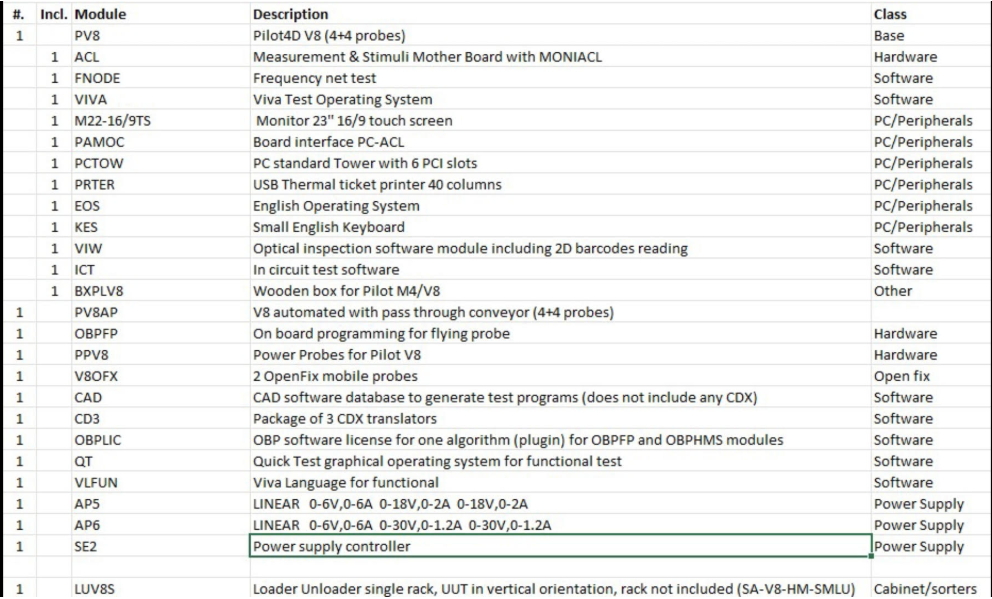

構成

BASE SYSTEMS PV8A – V8 automated with pass-through conveyor (4+4 probes) – Base HARDWARE ACL – Measurement & Stimuli Mother Board with MONIACL OBPFP – On Board Programming for Flying Probe PPV8 – Power Probes for Pilot V8 V8OFIX – 2 OpenFix Mobile Probes SOFTWARE FNODE – Frequency Net Test VIVA – Viva Test Operating System EOS – English Operating System VIW – Optical Inspection Software Module (incl. 2D barcode reading) ICT – In-Circuit Test Software CAD – CAD Software Database to Generate Test Programs (no CDX) CD3 – Package of 3 CDX Translators OBPLIC – OBP Software License for One Algorithm (plugin) QT – Quick Test Graphical Operating System for Functional Test VLFUN – Viva Language for Functional Test PC / PERIPHERALS M22-16/9TS – Monitor 23" 16:9 Touch Screen PAMOC – Board Interface PC-ACL PCTOW – PC Standard Tower with 6 PCI Slots PRTER – USB Thermal Ticket Printer (40 Columns) KES – Small English Keyboard POWER SUPPLIES AP5 – Linear 0-6V, 0-6A / 0-18V, 0-2A / 0-18V, 0-2A AP6 – Linear 0-6V, 0-6A / 0-30V, 0-1.2A / 0-30V, 0-1.2A SE2 – Power Supply Controller CABINETS / SORTERS LUV8S – Loader Unloader Single Rack, Vertical Orientation (rack not included, SA-V8-HM-SMLU) OTHER BXPLV8 – Wooden Box for Pilot M4/V8
